Deep well pump RURIS Aqua 101
RURIS Aqua 101 submersible water pump is suitable for the transfer of clean water from drilled wells or tanks, supplying small irrigation systems or various households. This pump can be used independently or as part of a hydrophore group.
Facilities
RURIS Aqua 101 it is made of stainless steel, having a copper winding engine in an oil bath.
RURIS Aqua 101 is a turbine pump with one floor.

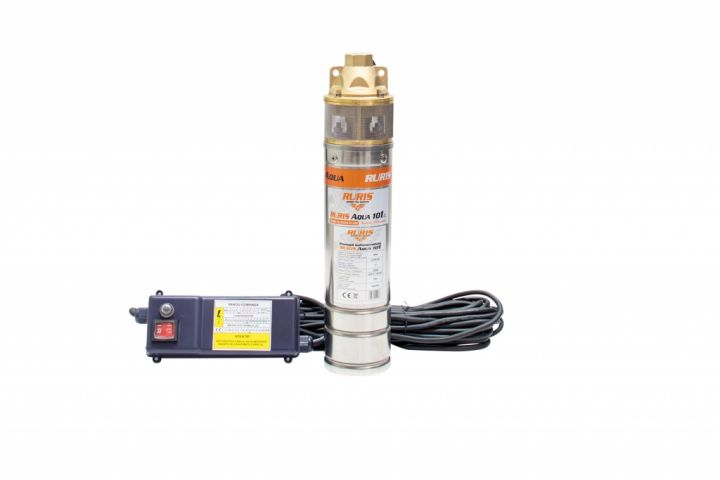

RURIS Aqua 101 is delivered with a control panel and cable of 15 m.
Uses
RURIS Aqua 101 transfers clean water from drilled wells or tanks, the pumped water can easily supply small homes, houses, cottages, etc.
Also, RURIS Aqua 101 can also be used in small households for irrigation or at a dripping systems.
Easy to handle
RURIS Aqua 101 it is equipped with a power cable with a length of 15 m and is easy to handle.
- ModelRURIS Aqua 101
- Engine power750W
- Maximum discharge height60m
- Maximum diving depth15m
- Amount of sqm sand discharged water40G
- Flow2,4m³/h
- Levels1
- Protection classIP 68
- Maximum work temperature35° C
- Water typeClean
- Particle max. size0,05 mm
- Startups/hour30
- Discharge diameter1 inch
- Pump exterior diameter4 inches
- Pump height44 cm
- Housing materialStainless steel
- Turbine materialBrass
- Engine coolantOil
- Cable lenght15m
- Winding100% Copper
- Control panelYes
- FloatNo
- Voltage230V/50Hz
- Weight12.9 kg
- Order code4skm100
- Warranty24 months
 |  |  |  |  |  |  |  |  |  |  |  |  |  | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | RURIS Aqua 8 | RURIS Aqua 9 | RURIS Aqua 11 | RURIS Aqua 30 | RURIS Aqua 35 | RURIS Aqua 40 | RURIS Aqua 101 | RURIS Aqua 103 | RURIS Aqua 104 | RURIS Aqua 105 | RURIS Aqua 690 | RURIS Aqua 790 | RURIS Aqua 890 | RURIS Aqua 1090 |
| Engine power | 400W | 750W | 550W | 550W | 1300W | 750W | 750W | 1100W | 1100W | 1500W | 370W | 550W | 750W | 1100W |
| Maximum discharge height | 7m | 8m | 25m | 7,5m | 12m | 100m | 60m | 100m | 100m | 140m | 60m | 60m | 79m | 100m |
| Maximum diving depth | - | - | - | - | - | 15m | 15m | 15m | 15m | 15m | 15m | 15m | 10m | 10m |
| Amount of sqm sand discharged water | 15-30G | 5-10G | 15-30G | 15-30G | With shredderr | 15-30G | 40G | 15-30G | 15-30G | 40G | 150G | 150G | 500G | 500G |
| Flow | 7m³/h | 12,5m³/h | 3,6m³/h | 8,5m³/h | 18m³/h | 1,8m³/h | 2,4m³/h | 1,8m³/h | 1,8m³/h | 2,6m³/h | 3m³/h | 3m³/h | 4m³/h | 4m³/h |
| Levels | 1 | 1 | 1 | 1 | 1 | -(tip şurub) | 1 | -(tip şurub) | -(tip şurub) | 3 | 14 | 8 | 10 | 15 |
| Protection class | IPX8 | IPX8 | IP 68 | IPX8 | IP 55 | IP 68 | IP 68 | IP 68 | IP 68 | IP 68 | IP 68 | IP 68 | IP 68 | IP 68 |
| Maximum work temperature | 35° C | 35° C | 35° C | 35° C | 35° C | 35° C | 35° C | 35° C | 35° C | 35° C | 35° C | 35° C | 35° C | 35° C |
| Water type | Clean | Dirty | Clean | Clean | Dirty | Clean | Clean | Clean | Clean | Clean | Clean | Clean | Clean | Clean |
| Particle max. size | 0,05 mm | 3,5 mm | 0,05 mm | 0,05 mm | 3,5 mm | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm | 0,05 mm |
| Startups/hour | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Discharge diameter | 1 inch/1.25 inches | 1 inch/1.25 inches | 1 inch | 1 inch/1.25 inches | 1 inch | 1 inch | 1 inch | 1 inch | 1.25 inches | 1 inch | 1 inch | 1.25 inches | 1.25 inches | 1.25 inches |
| Pump exterior diameter | - | - | - | - | - | 4 inches | 4 inches | 4 inches | 4 inches | 4 inches | 3 inches | 4 inches | 4 inches | 4 inches |
| Pump height | 28 cm | 29 cm | 40 cm | 28 cm | 46 cm | 59 cm | 44 cm | 66 cm | 85 cm | 53 cm | 87 cm | 77 cm | 47.5 cm | 60 cm |
| Housing material | Plastic | Plastic | Aluminum | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Turbine material | PPO (techno-polymer) | Plastic | Aluminum | - | Cast iron | - | Brass | - | - | PPO (techno-polymer) | PPO (techno-polymer) | PPO (techno-polymer) | Polypropylene float | Polypropylene float |
| Engine coolant | Natural-water | Natural-water | Natural-water | Natural-water | Natural-water | Oil | Oil | Oil | Oil | Oil | Oil | Oil | Oil | Oil |
| Cable lenght | 10m | 10m | 15m | 10m | 10m | 15m | 15m | 30m | 30m | 30m | 25m | 25m | 15m | 15m |
| Winding | Aluminum | Aluminum | Aluminum | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper |
| Control panel | No | No | No | No | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Float | Yes | Yes | Yes | Yes | Yes | No | No | No | No | No | No | No | No | No |
| Voltage | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz |
| Weight | 3.6 kg | 4.4 kg | 9 kg | 4.4 kg | 19.5 kg | 12.4 kg | 12.9 kg | 20.5 kg | 13.7 kg | 18.8 kg | 11.7 kg | 13.8 kg | 12.9 kg | 12.9 kg |
| Order code | fspxx8c | fspxx8dw | qdx1.5-25-0.55 | qds550d | wq1300d{f}-1 | 4qgd1.8-100-0.75 | 4skm100 | 4qgda1.0-160-1.1 | qgda1.8-100-1.1 | 4skm200 | 3stm3-14 | 4stm2-8 | 900jd216-0.75 | 10902021 |
| Warranty | 24 months | 24 months | 24 months | 24 months | 24 months | 24 months | 24 months | 24 months | 24 months | 24 months | 24 months | 24 months | 24 months | 24 months |
