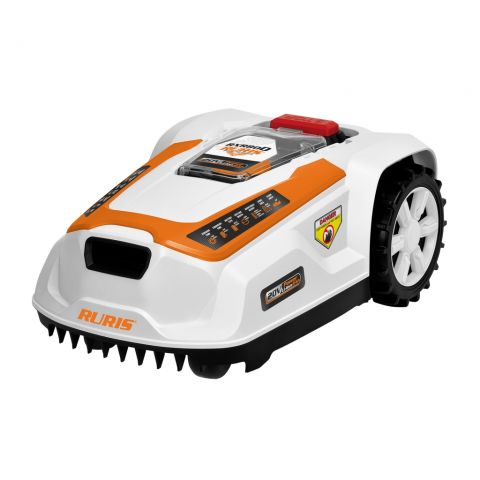

Robot lawn mower RURIS RXR800

Order code: 800rxr2024

The RURIS RXR800 Lawn Mowing Robot is perfect for those who want a well-maintained lawn without any effort. The product helps achieve a uniform lawn thanks to its cutting system and regular mowing function. Installation and preparation for use are very simple and do not require technical knowledge.

You only need to set the perimeter boundaries of the areas where lawn maintenance is desired, and the robot does all the work on its own.

The RURIS RXR800 Lawn Mowing Robot has a working perimeter of 300 sqm and a cutting width of 18 cm.

Due to its ability to climb and work on slopes with an inclination of up to 25 degrees, it is very efficient. The robot operates with a Li-ion battery, with a voltage of 20V and a capacity of 2Ah, allowing a working time of approximately 40 minutes.

Control Panel with Electronic Display

The RURIS RXR800 Lawn Mowing Robot is equipped with a control panel with an electronic display that provides an intuitive way to record all settings and view all the robot's functions. The robot is manually set using the keys on the control panel.

Package Contents

The RURIS RXR800 Lawn Mowing Robot comes equipped with a docking station, supports for fixing the station and perimeter wire to the ground.

Features

The RURIS RXR800 Lawn Mowing Robot is equipped with impact, tilt, and lift sensors that protect it against obstacles. It initiates a change of direction when the sensors integrated into the robot's hood detect an obstacle, or it stops if it is lifted during operation. Additionally, the device is protected against unauthorized use or theft by configuring a PIN code.

The RURIS RXR800 Lawn Mowing Robot has large wheels that ensure precise traction, allowing it to easily handle hilly lawns or slippery surfaces. The mowing system consists of a disc with three interchangeable steel cutting blades.

The disc is mounted on a mobile system that allows adjusting the lawn maintenance height from 20 mm to 60 mm. Moreover, the mowing speed is constant regardless of the angle of inclination.

Thanks to the rain sensor, the lawn robot automatically returns to the charging station when it rains. After completing the lawn maintenance activity, the robot returns to the charging station.

ModelRURIS RXR800
EngineElectric
Cutting height25-60 mm
Working width180 mm
Li-ion battery voltage20V
Li-ion battery capacity2Ah

Charging time45 minutes
Work time40 minutes
Maximum climb angle25°
Maximum speed0,4 m/s
Working area800 sqm
Weight8.88 kg
